Brother KE-430HX

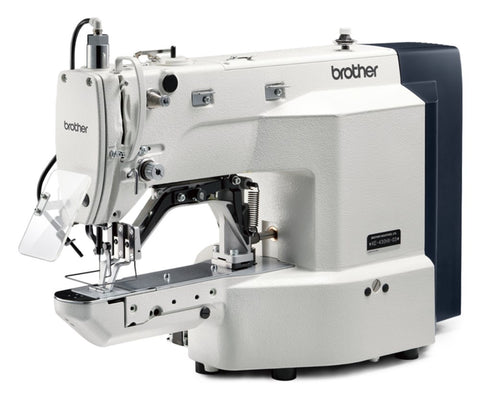

The Brother KE-430HX Electronic Direct Drive Lockstitch Bar Tacker .
From Swimwear to canvas and webbing there is a subclass to suit your needs.
Description
The fastest machine in its class and with the added feature of the needle cooler makes this machine more reliable at higher speed. Higher speed increases the productivity.
Brother’s superior design and engineering has produced this high quality, user friendly machine that will require less maintenance.
The automatic thread trimmer is driven by a stepping motor which cuts the thread shorter, more stable , and quieter than conventional mechanical thread trimmer. Lessening the need to trim after sewing.
The brand new thread take-up stroke provides stable thread tightening.

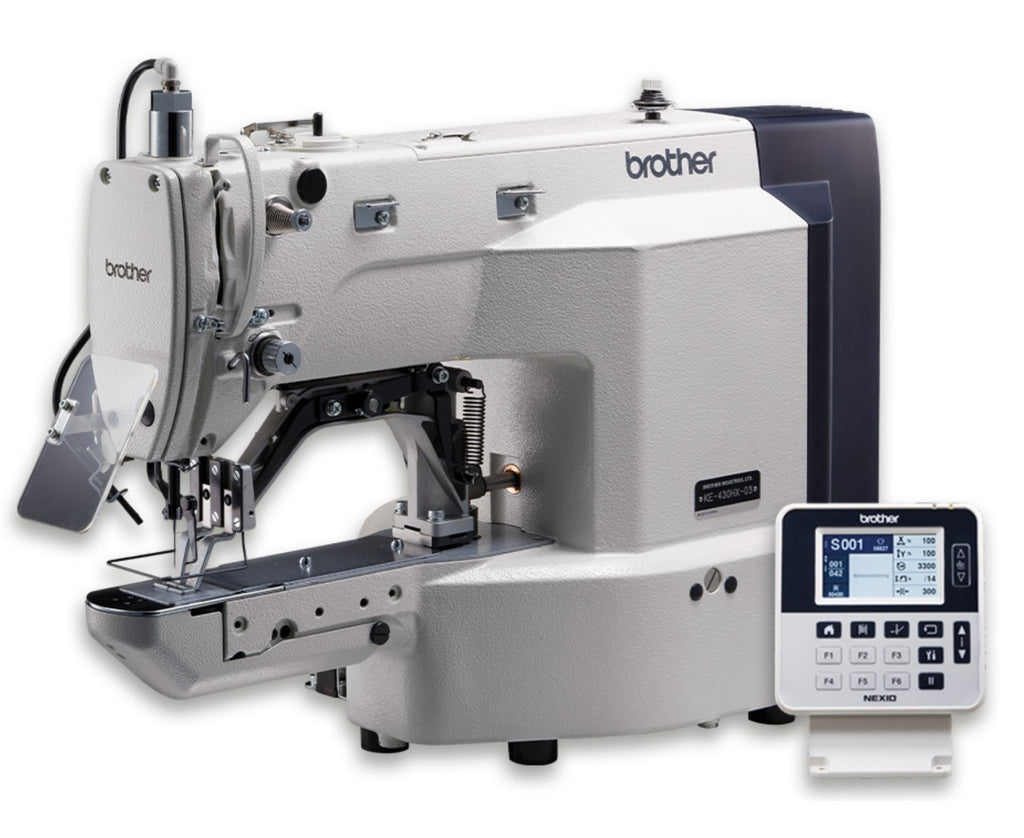

Equipped with a Colour LCD which displays items with illustration icons, offering use-intuitive operation. It is easy to set the cycle program, along with sewing patterns, sewing speed, and scale. The upper thread tension can be stored with-in a user program.
Features
- Integrated Direct Drive Motor
- Colour touch screen with USB Port
- Heavy duty Wheeled Stand Table
- Increased sewing speed
- Improved Trimming system
- Programable stitch patterns
- Built in Bobbin winder
- Automatic lubrication
- Easy to use Control panel
Specifications
- Application: Light - Medium - Heavy
Setup to your requirements - Sewing Area: Max 40x30mm
- Maximum Sewing Speed: 3300 spm
- Stitch Length: 0.05mm - 12.7mm
- Work Clamp Height: Max 17mm
- Lubrication: Semi-Dry
- Needle: DP X17
|
KE-430HX |
1 |
3 |
5 |
0K |
|
|
Application |
Light materials |
Medium materials |
Heavy materials |
Knitted materials |
|
|
Lubrication |
Semi-dry |
|
|||
|
Max. sewing speed |
3,300sti/min |
|
|||
|
Max. sewing area |
Max. 40x30mm*1 |
|
|||
|
Stitch length |
0.05～12.7mm |
|
|||
|
Feed mechanism |
Y-θ intermittent feed mechanism (pulse-motor driven mechanism) |
|
|||
|
No. of stitches |
Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already preset) |
|
|||
|
Max.No. of stitches |
5,000 stitches/pattern |
|
|||
|
Work clamp lifter |
Pulse motor drive system |
|
|||
|
Work clamp height / Button clamp height |
Max. 17mm |
|
|||
|
Rotary hook |
Shuttle hook (double shuttle hook, optional) |
|
|||
|
Digital tension |
Standard equipment |
|
|||
|
Thread wiper |
Standard equipment |
|
|||
|
Thread trimmer |
Standard equipment |
|
|||
|
Thread nipper |
-01、-03、-0K：Standard equipment（-05: Option） |
|
|||
