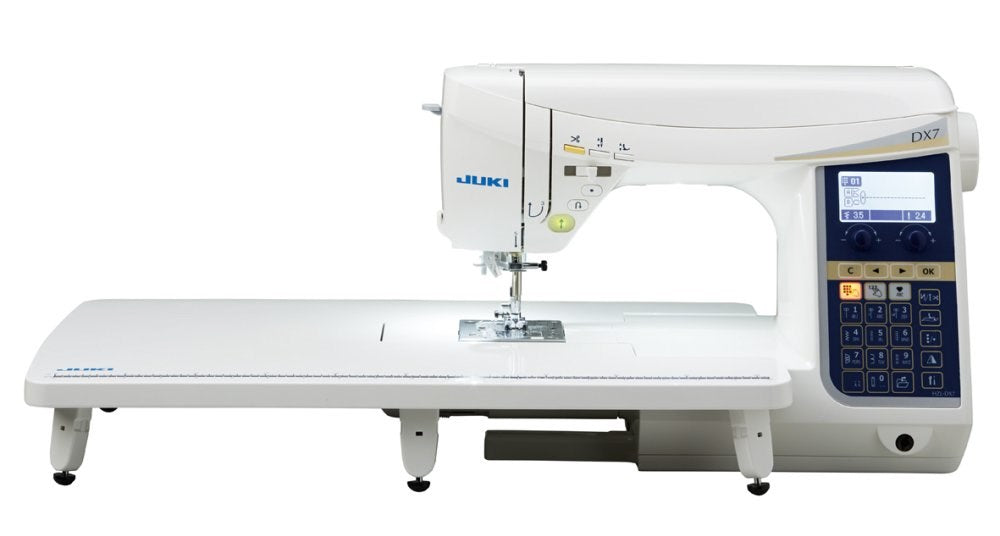

HZL-DX7
$2,735 RRP inc. GST
Enjoy the satisfaction of creating your own design while using high quality finishes. Get the most out of your sewing experience with the New Juki HZL-DX series and turn your creations into masterpieces.
Description
Take your sewing to the next level with the HZL-DX series, the automatic thread trimmer and the automatic footlift will make your sewing a breeze. You will enjoy the satisfaction of creating your own design while using high quality finishes
Features
- Automatic Needle Threader – Threads the needle with the press of a lever.
- Automatic Thread Trimming.
- Electronic Foot Lift.
- Foot Float Function.
- Foot Pivot Function – slight lift of foot with needle down to simply change direction of sewing without need for re-alignment.
- Drop Feed – Drop the feed god teeth with the flip of a switch for freehand embroidery or quilting.
- Direct Pattern Selection – 10 Patterns can be swiftly selected and recalled.
- Automatic Buttonhole with sensor system.
- Independent Bobbin Winder.
- Auto Lockstitch Function – Create invisible lockstitches at start/end of sewing.
- Box Feed System.
- LED Light
- Increased Sewing Speed.
- Slow Inching Speed Function.
- Knee Press Lever.
- and more…
Specifications
Maximum Sewing Speed : 1050 spm
No. of Stitch Patterns (Fonts) : 287 (4)
Sewing Area (max.) : 203mm x 112mm
Max. Stitch Length : 5mm
Max. Zig Zag Width : 7mm
No. of Buttonholes : 10
Presser Foot Lift : Manual Hand Lever
Knee Press Lever
Electronic Foot LIft
Adjustable Foot Pressure : Yes
Needle Type : 705H
Dimensions : 445(W) x 291(H) x 210 (D) mm
Weight (Machine only) : 10.3kg
Product Video
Included Accessories
400-57923 – Standard Presser Foot
HSM001141000000 – Bobbin (4)
400-57289 – Button Presser Foot (E)
401-12905 – Manual Buttonhole Presser Foot (I)
400-80960 – Overcasting Presser Foot (C)
401-12904 – Blind Stitch Presser Foot (D)
A9823-010-0A0 – Zipper Presser Foot (B)
A9110-700-000 – T-Shape Screwdriver
A9131-990-000 – Seam Ripper
A9137-990-000 – Cleaning Brush
A1145-E50-000 – Small Spool Cap
A1150-980-000 – Middle Spool Cap
400-80963 – Walking Foot (N)
400-80959 – Patchwork Presser Foot (P)
400-80964 – Quilt Presser Foot (Q)
400-83061 – Twin Needle (one set)
A9833-550-0A0 – Quilt Guide
400-58089 – Auxiliary Spool Pin
401-44122 – Foot Controller
400-70255 – Knee-lifting Lever
400-80962 – Open Toe Presser Foot (O)
400-80965 – Edge Sewing Presser Foot (R)
A9103-380-000 – Eyelet Punch
Optional Accessories
400-91174 – Advanced Quilter's Kit
400-91175 – Foot Heavy User Kit
400-80967 – Auxiliary Spool Pin (additional Spool Pin)
401-64071 – 1/4" Foot Presser
400-80949 – Quilt presser foot (open Type)
400-80953 – Quilt Presser Foot (Zigzag Type)
400-80954 – Binder presser foot
400-80958 – Rolled hemming presser foot
400-80957 – Hemming presser foot for zigzag
400-80955 – Invisible Zipper foot
400-80969 – Button attaching Presser foot
A9848-D25-0A0 – Magnetic Gauge
401-65358 – Foot Switch Stopper
401-63897 – Thread Stand
401-64074 – Stitch Area Magnifier
400-79312 – Smooth Presser Foot (T)
A9829-880-0A0 – Cording Presser Foot (H)
400-80951 – Applique Presser Foot
400-80956 – Pearl Attaching Presser Foot
400-80952 – Presser Foot with Guide
400-80950 – Cording and Embroidery Presser Foot
400-78483 – Wide Table
Downloads
HZL-DX7/DX5 Brochure
Complete Accessories Catalogue
HZL-DX Series Spare Parts List
Included Accessories
Instruction Manual HZL-DX Series
