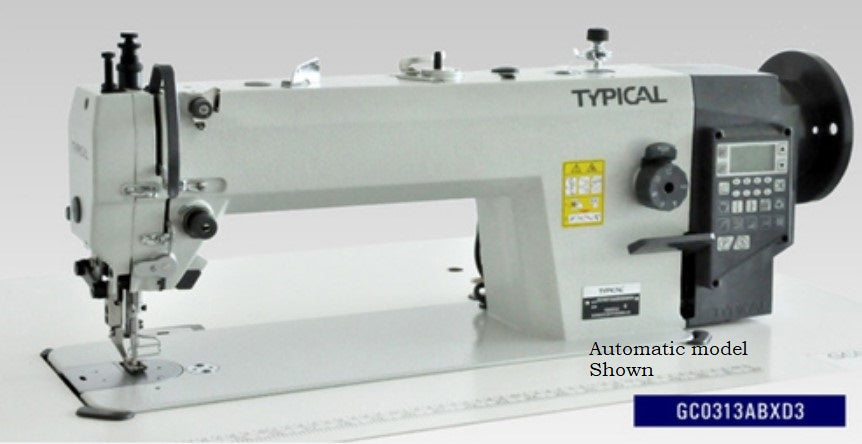

Typical GC0313DBX
The GC0313DBX is a Direct Drive Top and Bottom feed Walking foot Industrial sewing machine with a Huge 30mm Bobbin , Large work space 330mm x120mm (not Automatic trim)
Description
The Typical GC0313DBX with integrated Energy saving servo motor and controller. Their innovative quiet running design reduces energy consumption by up to 75%. Smooth running with reduced vibration allows for more speed, which in turn, increases productivity.
With the “Triple times hook”less bobbin changes are required which speeds up production - perfect for the products that require long runs.

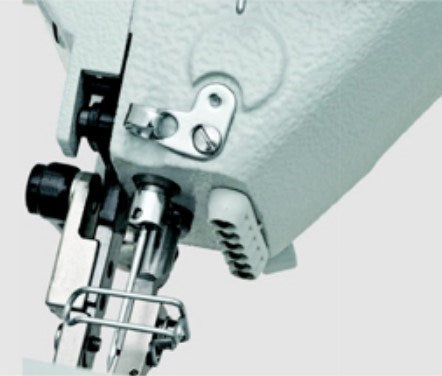

Integrated LED lighting gives you enhanced vision of the sewing area.
Comes complete with a generous size table and wheeled stand to make it easy for you to move around.
Features
- Integrated 750w Direct Drive Motor
- LED Needle Lamp
- Table (1200x535mm) and wheeled stand
- Increased sewing speed
- Foot pedal speed control
- Triple size Hook
- Large work space
- Reverse feeding (manual lever)
- Needle position(up/down)
- Built in Bobbin winder
- Automatic lubrication

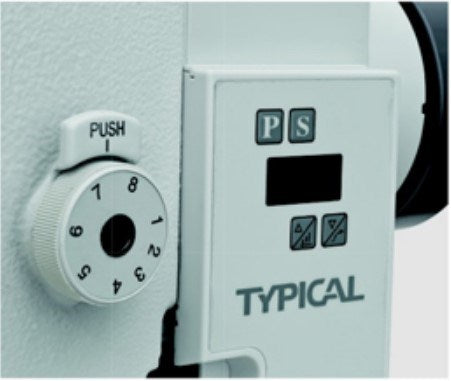

- Easy to use Control panel
Specifications
Number of needles - 1
Stitch Length - 0-12mm
Presser foot lift – Knee operated – 16mm
Needle system - DPX17 (135x17) #20-23
Max Speed - 2200spm
Sewing bed size – 330mm x 120mm
Included Accessories
Packet of 10 DPx17#20 Schmetz needles
Set of Screw drivers
1 x Machine Cover
5 x bobbins
1 x Machine Manual
