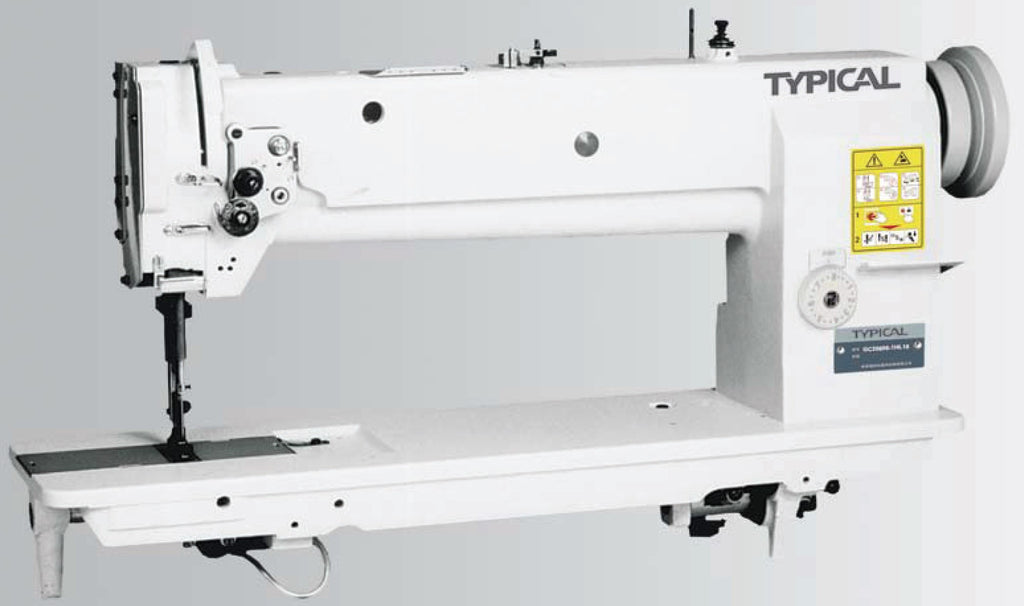

Typical GC20606-1HL18 Walking Foot Machine Long High Arm - Single Needle

  • Sale
  • Regular price $4,750.00

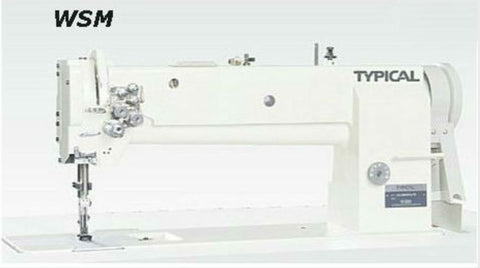

Typical GC20606HL18

18" long high arm, twin needle compound feed machine, suitable for sewing medium to heavy weight materials such as upholstery, leather, canvas, vinyl etc.

The long and high arm allows excellent clearance when sewing large projects such as shade sails,lounge suites etc.

The combined needle feed and walking foot system allows consistent feeding of materials without the risk of stitch gathering.

High presser foot lift of 16mm enables easy material handling.

The Typical GC20606HL18 is capable of a maximum speed of 2000 spm.

2 x large vertical axis rotary hooks with large bobbins.

Reduced operating noise and vibration.

Automatic lubrication to sewing head.

Stitch length can be easily selected by the stitch dial.

Alternating vertical movement mechanism prevents irregular stitches.

The safety clutch device on the Typical GC20606HL18 is automatically engaged in the event of thread or mechanical obstruction, preventing possible hook damage. A reset button fitted to the bedplate returns the machine back to the normal state.




Clearance under Presser Foot

Hand 8mm / Pedal 16mm

Stitch Length



DP x 17 20~30

Needle Bar Stroke


Maximum Sewing Speed (rpm)


Bed Size

724 x 180mm

Working Space

457 x 100mm
