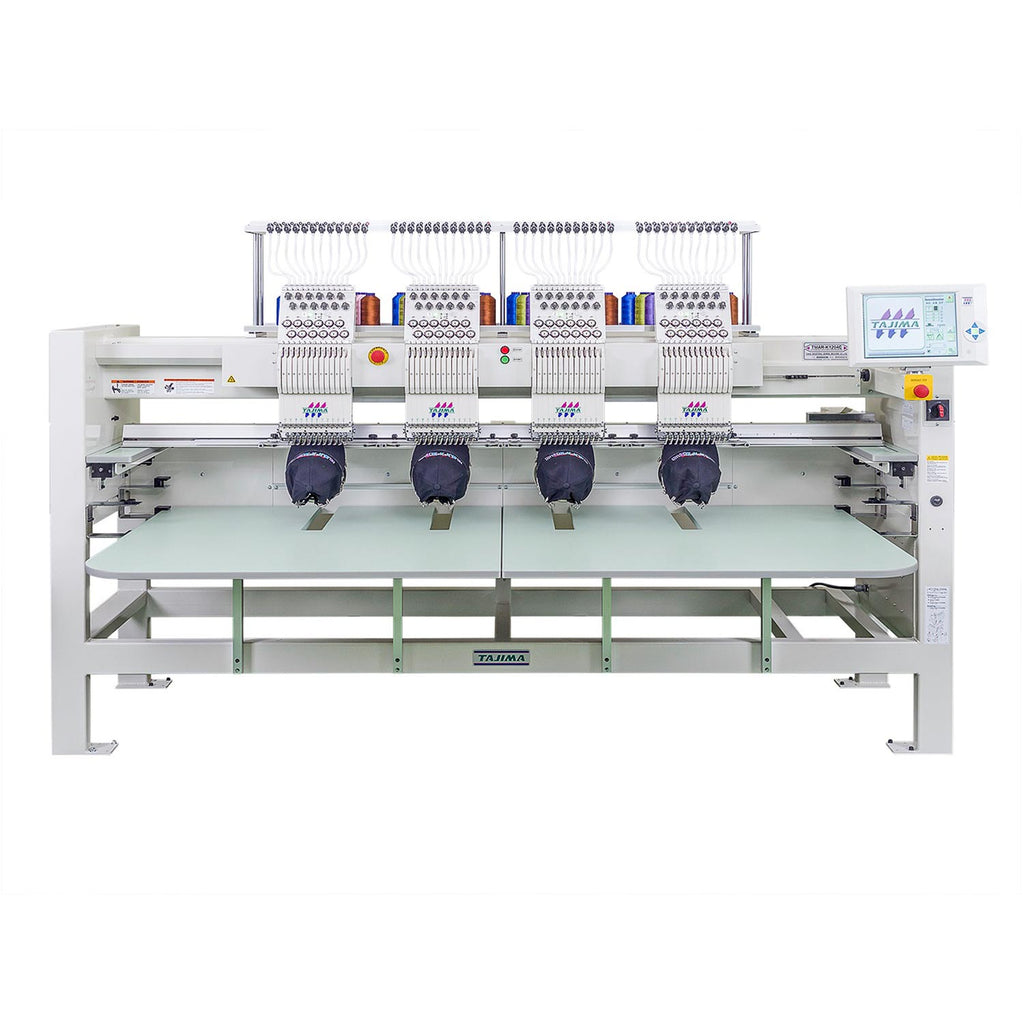

Tajima TMAR-K1204C (450x360)
Multi-Head 9/12/15 needle Premium Embroidery Machine.

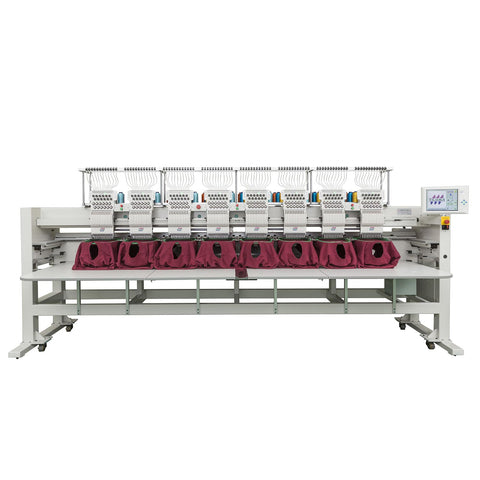

Available in 4/6/8 heads.
The TMAR-KC series is the embodiment of TAJIMA's technologies with high production efficiency, ultimate quality, outstanding durability and performance.
Description
The next-generation Tajima features a digitally-controlled presser foot (DCP), network access, and a slim cylinder design for easier access. The reinforced Wide Cap Frame has enhanced the embroidery stability thereby increasing the rotational speed to 1000rpm.
Features
Digitally Controlled Presser foot (DCP)
The DCP can reduce fabric fluttering that occurs during embroidery.
It is especially effective when working thick fabric, very thin fabric, and folds of material.
 |
“Fluttering” occurs when the material is lifted up during embroidery which causes skipped stitches, miss-trimming, and reduced quality stitching. |
 |
The DCP can be adjusted randomly according to the material thickness on the operation panel. It simplifies the mechanical process that was previously required and time consuming. |
Fine Stitch Mode (FS Mode)
Fine Stitch (FS) is a special mode that provides stability and creates a high quality of embroidery that makes it easy to sew with hard-to-embroider threads.
 |
FS Mode improves the quality of embroidery created with thick thread or soft-twisted thread like metallic and heavier yarns that are difficult to use with the normal machine settings. As a standard part of the TMAR machine firmware, FS mode can be turned on with an easy settings change. |

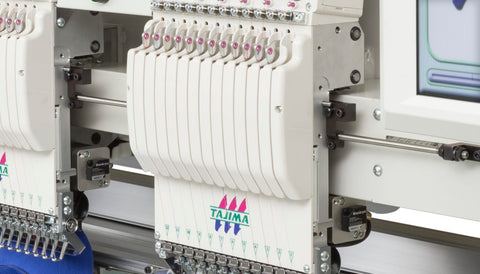

New Slim Type Cylinder
The new slim type cylinder has been reduced by 12 % in width, which is even better for working on children’s wear and smaller pockets.
 |
Together with the new reinforced Wide Cap frame, the slim type cylinder gives the ability to run at higher speeds than previous models,up to 1000rpm which will increase production efficiency and Quality. |
Network
The Tajima TMAR Series can easily receive embroidery data by connecting the embroidery software to a network.
|
|
Autograph and DG/ML are recommended as this software simplifies the process of personalization and allows for the smoothest design data generation and transmission to the machine. |
More Features
- 450x500/ 450x360 Sewing area
- Big memory
- Easy threading and tensioning system
- 2 x USB and 1 x LAN Ports
- Barcoding ready (Easy networking)
- Full colour touch screen
- Laser position marker
- Thread trappers
- New style needle plate
Included Accessories
|
|
LED Light |
 |
Border Frame
|
 |
Cap Frame 75x360 |
 |
2 x Frame 120mm 2 x Frame 150mm 2 x Frame 180mm |
|
|
|
Talk to us about adding a Starter Pack (for new customers )
- Madeira Embroidery Thread
- Backing Pack
- Loading Board
- Embroidery Scissors
- Pulse DG16 Software
Optional Accessories
 |
Laser Cross marker – To help locate Embroidery Position |
 |
Beam Sensor – Safety Device to stop the sewing for operator safety |
 |
 |
|
 |
|
 |
Specifications
Model: TMAR-KCNeedles: 9 / 12 / 15
Embroidery space (DxW) mm:
Wide Cap Frame: 75x360
Semi-wide Cap Frame: 83x180
Tubular Frame: 439x419/ 439x279
Width(mm): 2,260/ 2,560/ 3,260/ 3,280/ 4,260/ 4,000/ 5,260
Depth(mm): 1,355
Height(mm): 1,730/ 1,740
Speed: Max. 1,100rpm
Electricity: Single-phase 100V, 200V
Power Consumption: Maximum 470W (910VA)
Product Video
Downloads
TMAR-KC Brochure
