Typical GC20665L14D Direct Drive Single Needle Walking Foot -Standard

  • Sale
  • Regular price $4,715.00


GC20665L14-D

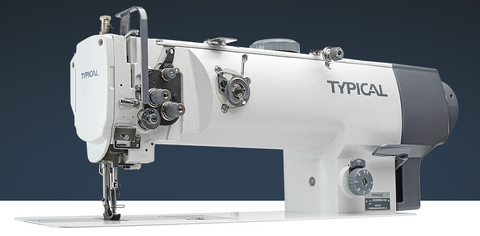

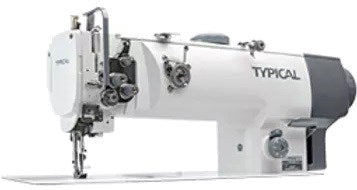

The GC20665L14D  impresses with robust quality, modern features, and unbeatable value for money.

The perfect machine for the applications of upholstery, automotive, tent production, boat equipment, sail makers, and many more relies on a powerful direct drive, which allows to process multiple layers of fabric or even hard materials such as PVC easily.

The TYPICAL GC 20665L14D is a reliable worker. Thanks to the proven quality of past machines and plenty of new features, it‘s the perfect machine for the applications of upholstery, automotive, tent production, boat equipment, sail makers, and many more.

The powerful direct-drive motor allows up to 2.500 spm. Multiple layers of fabric and even hard materials such as PVC can be sewn easily.

A comfortable overload clutch, which can be reset without turning the machine over, protects the hook under high loads from damage such as thread jamming.

Description

Direct Drive Single Needle Compound feed walking foot. With a smooth, powerful, efficient direct drive motor, Integrated LED sewing light plus many other features, The GC20665L14D will deliver the results that you would expect from a more expensive machine.

Suitable for - Automotive, Upholstery, Bags, Backpack, Suitcases, Shade Sails, Tents

Features

  • Integrated powerful direct drive (750w).
  • New lubrication System
  • Integrated LED sewing light and multi-functional switch within the operator workspace
  • New style bobbin winder
  • New top-feed with adjustment dial
  • Large clearance under the arm

Specifications

Maximum Sewing Speed: 2500 spm
Clearance Under  the arm - 360 x 103
Max thread thickness - 15/3
Needle System - 135x17  120-160Nm
Max foot lift height - 16mm
Material thickness - Medium Heavy
Bobbin - 28mm

Product Video

https://youtu.be/EKOXYit-3Qo

Included Accessories

1 x Packet of needles

6 x bobbins

1 x set of screwdrivers

1 x Machine cover

1 x Instruction manual - sewing machine

1 x Instruction manual - Motor Drive

Downloads

GC20665L14D Brochure (General Catalogue)

Download

 GC20665L14D Spare Parts List / Instruction

Download
