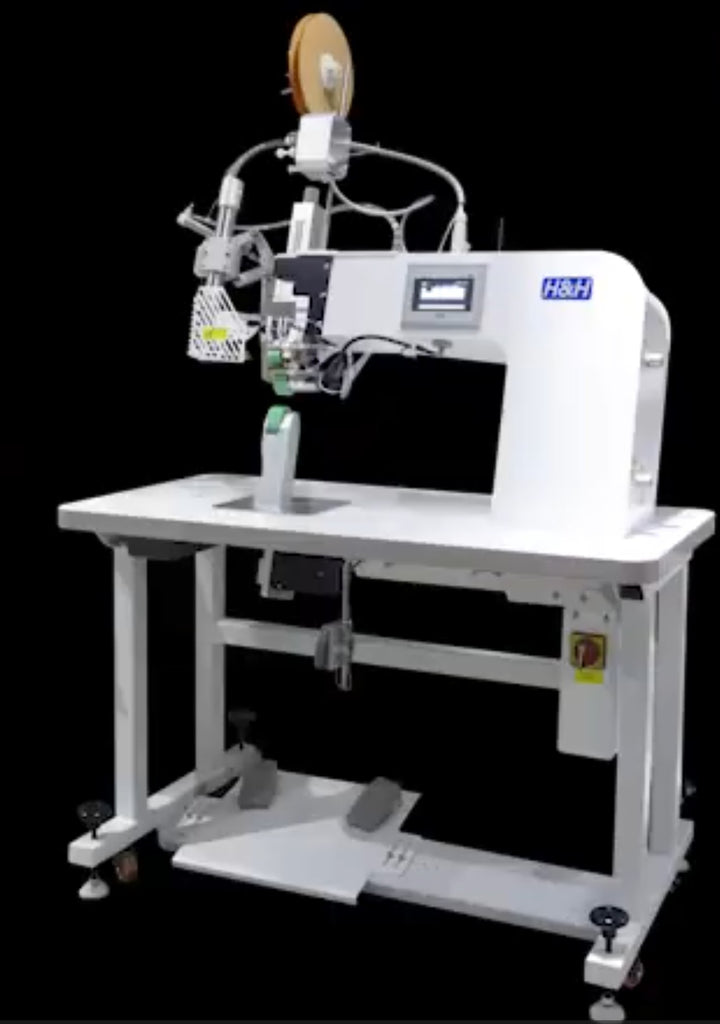

H&H AI-119-Spec I-NNN (standard inline pedestal)
Hot Air Sealing Machine
Intelligent Solution
- Applicable to 6-25mm Width Tape (Standard Version)
- Applicable to Stretch Fabric
- Applicable to All Types of Waterproof, Reinforcing, and Decorative Tape
- Statistical Tape Usage
- Customized Software
- Customized Attachment According to Different Applications
- Optional A/B/C/D Lower Seats
Highlighting Features
- Standard Digital Tape Tensioner Device
- Differential Speed Top/Bottom Roller
- Switchable Clamp Working Mode can Perfectly Solve the Tape Problems of Elongation, Deformation and Distortion
- Special Designed Nozzle Action, Easy For Operation
- Can Set the Temperature Deviation Out of Range Alarm
- Automatic Fixed Length Mode
- Digital Air Pressure Display
- Patented Touch Screen Interactive Interface, Easy to Learn
- Modular Design, Easy Maintenance
- Ergonomic Design
- Standard Fast Charging Module, Auxiliary Lighting
- Special Designed Lower Roller Selection Mode
- Multi-language Support
- Optional Bluetooth Lock and Protect Data
|
 |
|
|
|
|

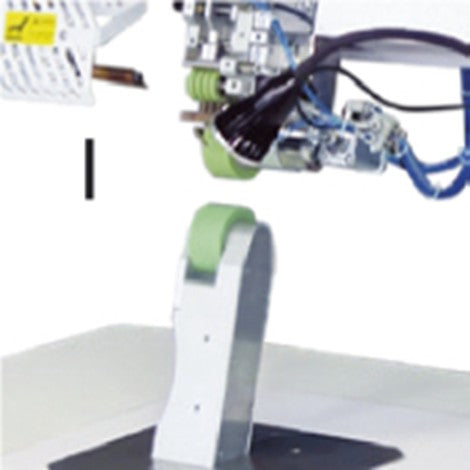

Top & Bottom Differential Feed roller |
Tape Cutter
|
Colour display with touch screen |
Tape feeder |
Hot Air |
Optional
|
|
|
|
|
|
Spec A Standard Offset Pedestal |
Spec B Cylinder Arm |
Spec C Glove Attachment |
Spec D Long Arm – (requires independent dedicated platform)
|
Specifications
|
Power Supply |
AC 220V 50/60Hz, 1Φ |
|
Power Consumption (W) |
3600 |
|
Compressed Air (MPa) |
> 0.4-0.8 |
|
Maximum Sealing Speed (ft/min) |
60 |
|
Maximum Temperature (ºC) |
800 |
|
Nozzle Unit (mm) |
22 |
|
Upper Roller Width (mm) |
25.4 |
|
Lower Roller Width (mm) |
25.4 |
|
Dimensions LxWxH (mm) |
1200 x 660 x 1800 |
|
Net Weight (kg) |
130 |
|
Optional Roller (mm) |
10-31 |
