Juki PS-800 Pattern Stitcher

PS-800 Computer Controlled Pattern Seamer

Streamline your production line with the Juki PS-800—an automated pattern seamer designed to deliver high-precision, consistent stitching without requiring a skilled machinist. Ideal for everything from lightweight apparel and sportswear to heavy-duty padded jacket panels, the PS-800 automates complex sewing tasks at speeds of up to 3,000 stitches per minute.

Key Features & Benefits

1. Two Table & Sewing Area Sizes

• Compact Model (PS-800-8045): 800mm (X) x 450mm (Y) sewing area. Perfect for space-conscious workshops, localized production lines, or smaller parts.

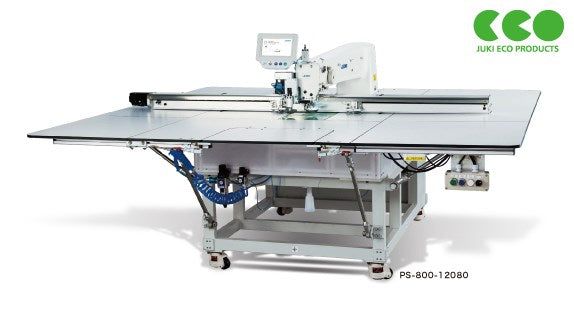

• Large Model (PS-800-12080): 1,200mm (X) x 800mm (Y) sewing area. Built for large fabric panels, coats, and oversized patterns.

2. Stain-Free "Dry Head" Technology

• Advanced dry-head mechanism requires no oiling around the needle area (only the hook needs minimal lubrication).

• Prevents oil drops and stains on delicate, light-coloured, or filled fabrics like down jackets.

3. Smart Presser Foot Adjustment

• Steplessly adjusts its height while sewing to accommodate changing fabric layers.

• Eliminates skipped stitches and thread breakage on multi-layered seams or padded materials.

4. Automatic Pattern Recognition (RFID & Barcode)

• RFID readers automatically recognize your fabric clamps and instantly call up the correct sewing program.

• Eliminates setup mistakes and speeds up product switching.

5. Multi-Format Touchscreen Panel

• Touchscreen panel holds up to 999 sewing patterns in memory.

• Seamlessly imports standard CAD and embroidery formats (DXF, AI, PLT, DST) straight from a USB thumb drive.

6. Optional Integrated Fabric Cutters

• Equip your PS-800 with automated built-in trimming:

•

  • Rotary Knife: Best for straight lines and smooth curves.

•

  • Direct Driven Knife: Best for sharp straight lines.

•

  • Laser Cutter: Best for heavy-duty, hard materials and soft, stretchy knits.

Technical Specifications (At a Glance)

Optional Add-Ons

• Custom Clamps: Custom-built clamps tailored specifically to your exact pattern dimensions.

• Optional Extras: Barcode readers, bobbin thread remaining detectors, and fabric vacuum functions.
