MS591-900/82-910/17-911/50 BLN5 /CLN7

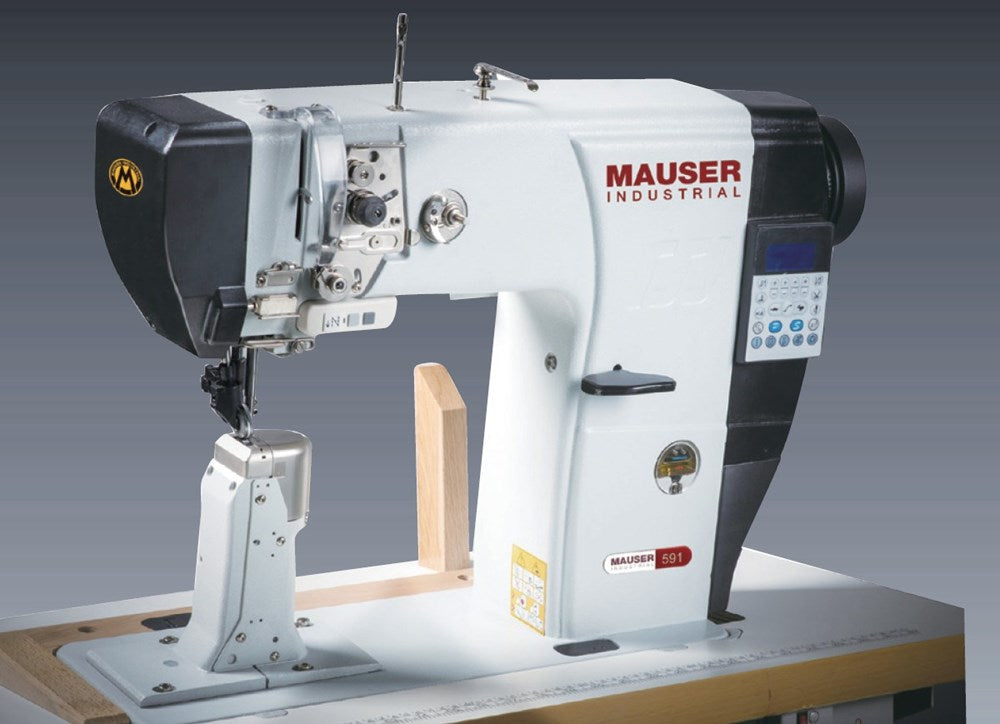

Single Needle Direct Drive Post Bed Roller Feed machine (right-hand) with vertical rotary hook
Description

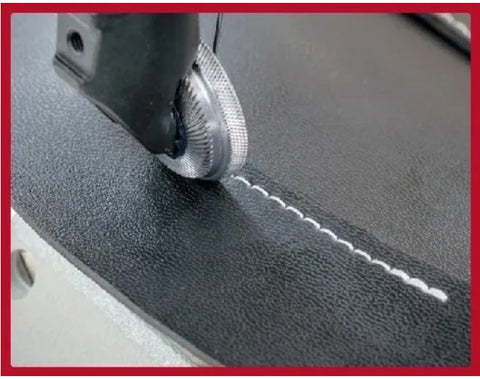

Mauser Spezial Post bed wheel feed with driven wheel foot and feed. Equipped with energy efficient fully integrated direct drive motor with Electric thread trimmer, Electric foot lift and solenoid-controlled reverse. Does not require compressed air
Suitable for – Shoes, boots, bags and Automotive Products.
Features
- Automatic Thread Trimming.
- Power saving direct drive motor
- Programable back tacks
- Foot lift – 13mm
- Stitch length – max 7mm
- LED Lamp
- Oil pump lubrication
- Top mounted bobbin winder
- Complete with table and wheeled stand
Specifications
Maximum Sewing Speed: 2200 spm
Max. Stitch Length: 5mm (BLN5) / 7mm (CLN7)
Presser Foot Lift : Manual Hand Lever, Knee Press Lever
Adjustable Foot Pressure : Yes
Needle Type : 134-35 #14/90 – 21/130 (BLN5) 18/110-23/160 (CLN7)
Thread – Ticket 80-40 (BLN5) 40-15 (CLN7)
CLN7 type- For thicker thread up to Ticket 15 and 7mm stitch length
BLN5 Type - For standard thead up to Ticket 40 and 5mm stitch length
