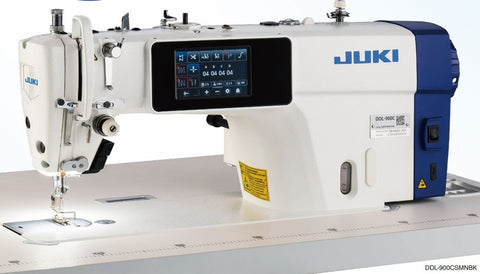

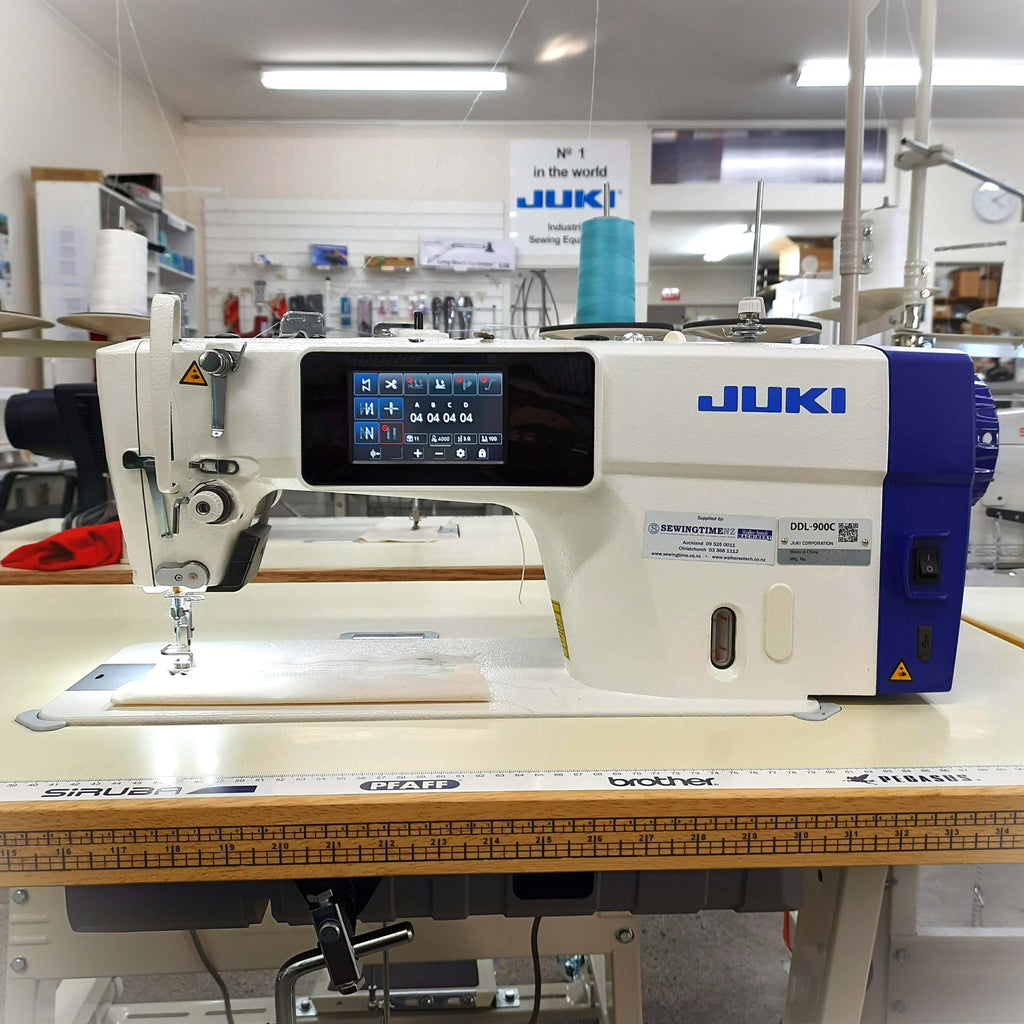

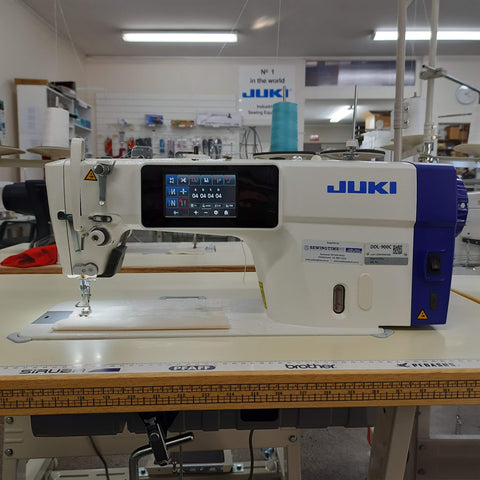

DDL-900C
Direct-drive, High-speed, 1-needle, Lockstitch Machine with Thread Trimmer , Electric Feed Length Control System , Automatic foot lifter.
Juki DDL-900C – With new generation direct drive motor , double blade trimmers to get extra short thread tail , oil shielded aluminium cast oil sump . This machine is smooth and a dream to use . Comes with both knee lift and stepping motor auto foot lift.
Weather your looking to upgrade your older machine or your looking to get your first machine The Juki DDL900C is the best machine on the market for both design and production.
Features
- 1-needle (DBX1 , 16x231 needle system)
- USB Port
- Electronically controlled feed system
- Direct-drive motor
- Automatic functions (thread trimmer, back tack, foot lift )
- In-built control panel
- High-speed sewing performance (5,000 sti/min)
- Stitch length adjustment up to 5mm
- Automatic lubrication system
- Assembled complete with top and wheeled stand
- With Auto and manual foot lift
Specification
- Max. sewing speed - 5000 sti/min
- Max. stitch length - 5mm
- Max. presser foot lift - 13mm - (by knee)
- Side-loading bobbin -( 212932909 )
- Needle System - (16x231 Size 80-110)
With the stepping motor used to control the feed mechanism, the feed pitch is adjusted with the color LCD touch panel control instead of the conventional pitch dial. The high-clarity display of the touch panel promises excellent visibility to enhance workability. The touch panel comes with every machine as standard, along with a lock function to prevent the operator from mistakenly changing the set values.
Digitalized feed pitches dramatically widen the range of stitch designs.
Compared with the conventional V-belt driven sewing machine, this sewing machine is driven by a direct-drive motor that consumes about 25% less power. The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging.
The machine adopts a double-blade drive rotary thread-trimming mechanism. By trimming thread just under the needle, this thread-trimming system consistently leaves no more than 3.5 mm of remnant thread on the material at sewing completion.
This device pulls the needle thread into the wrong side of the material at the beginning of sewing, thereby ensuring more beautifully-finished seams.
|
|
|
|
|
|
|
|
|
|
|
|
