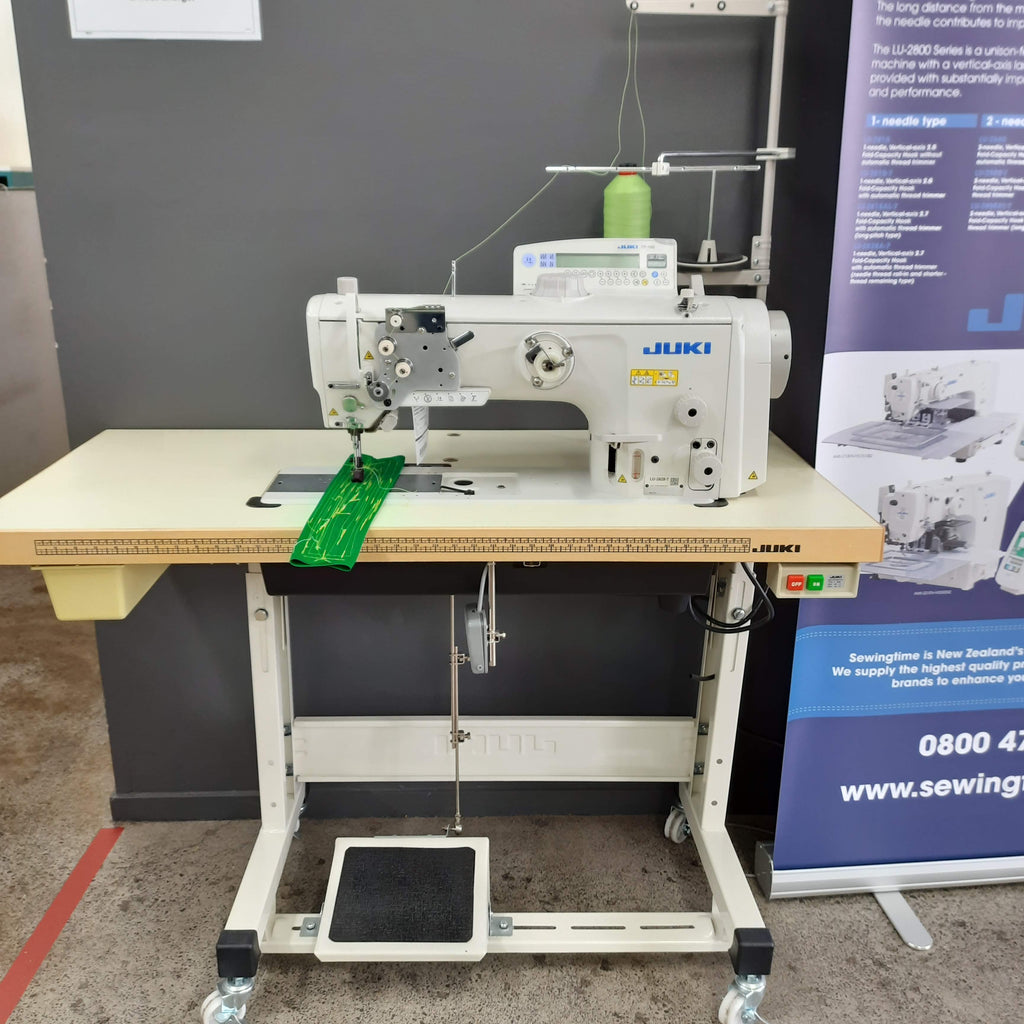

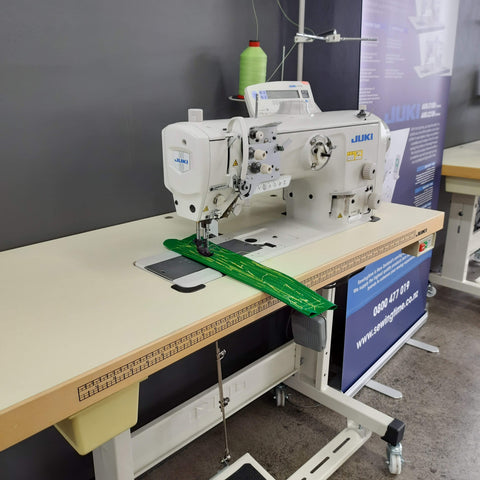

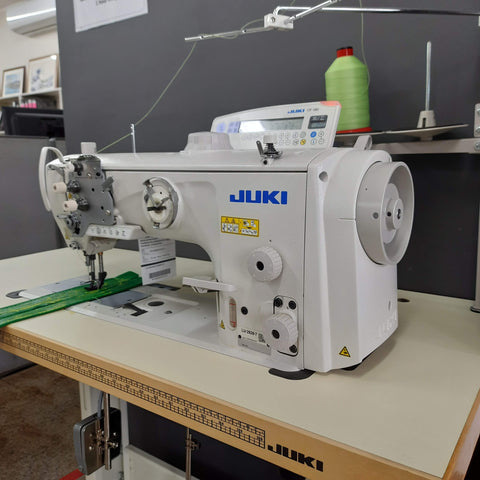

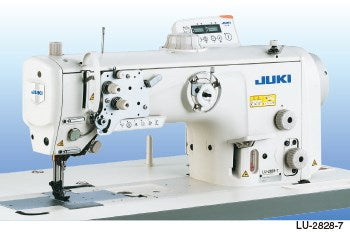

LU-2828A-70BBS/SC922BK/CP180C
Juki Semi-dry Direct-drive, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.7 Fold-Capacity Hook (Extra Large hook) Short thread remaining(Trimmer)
The shorter-thread remaining type LU-2828A-7 is a high-performance compound feed machine. It leaves a shorter thread on the material at the beginning of sewing by means of the needle thread clamp device, as well as the end of the sewing by means of the thread trimmer which is provided with a shorter-thread remaining function. This means that manual thread nipping both at the beginning and at the end of sewing is no longer required, thereby helping reduce operator fatigue. Thanks to the adoption of a 2.7 fold-capacity hook, the frequency of the bobbin thread changing are reduced and workability is improved on this walking foot machine.
Functions for improving seam quality and workability
The long-distance from the machine arm to the needle contributes to improved workability.
Double tension provided as: standard
Single or Double can be set easily through a Multi-functional 6-string switch, regarding the machine with the trimmer. (Available for more thick material)
Multi-functional 6-string switch (thread trimming switch)
In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one switch.

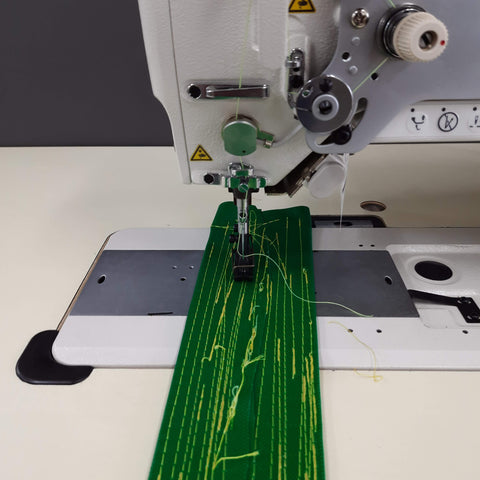

Walking-foot/presser-foot alternating vertical movement mechanism
The sewing machine has adopted a feed mechanism that keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.
Higher lift of the presser bar
A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.
Eccentricity of the feed driving cam is adjustable
Adjustment of the eccentricity of the feed driving cam provides the perfect stitch for any material or thread used, eliminating the need for additional machines.
New lubrication system
Lubrication system is powerful and stable even at low speed.
New bobbin thread spool device
New bobbin thread spool device is no necessity of rolling thread manually.
Stitch length can be changed over among different lengths
The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.
2.0/2.7 fold-capacity hook
The hook can be adjusted with a screw amount of needle guard contact to the needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.
High-torque direct-drive motor
New-type tank-style automatic lubrication mechanism
The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption. The remaining oil quantity indicator is provided on the front face of the machine head. Lubrication can be carried out without tilting the machine head.
